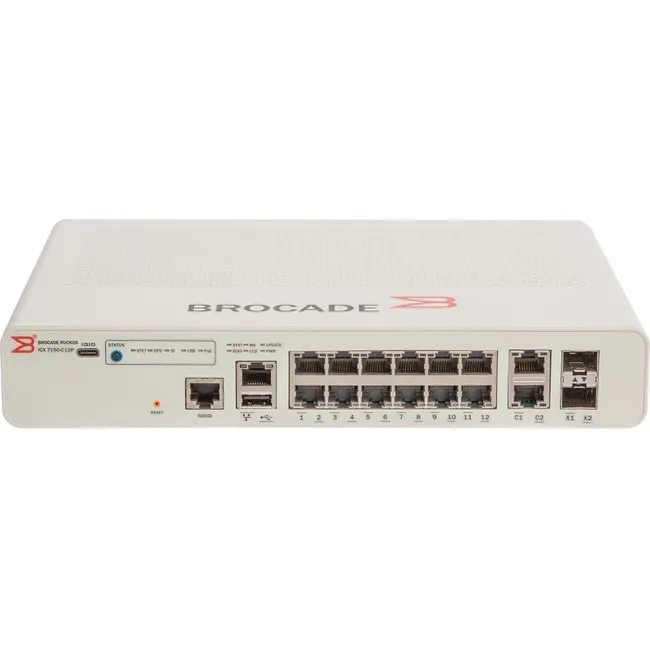

2024 CommScope RUCKUS ICX 7150: A Deep Dive into Enterprise-Class Networking

Executive Summary

The CommScope RUCKUS ICX 7150 series is a family of stackable switches designed for enterprise access deployment, offering a combination of high performance, flexibility, and scalability at an entry-level price point. The series is available in three formats: standard, Z-Series with multi-gigabit support, and compact. With non-blocking performance and up to 8x10 GbE ports for uplinks or stacking, the ICX 7150 series raises the bar for enterprise-class switching features.

The ICX 7150 series supports stack-level high availability and stack-level ISSU (In Service Software Upgrade) to ensure service resiliency and business continuity. Additionally, the series offers PoE/PoE+/PoH to power 802.11ac Wi-Fi products, sFlow-based network monitoring, and SDN-enabled with OpenFlow support. The ICX 7150 series is designed to work seamlessly with RUCKUS Wi-Fi access points, RUCKUS SmartZone, and RUCKUS Cloud, delivering unified wired and wireless management.

Architecture & Design

The ICX 7150 series is built on a robust architecture that combines enterprise-class switching features with high performance at an entry-level price. The series is available in 8, 10, 12, 24, and 48-port 10/100/1000 Mbps models with 1/10 GbE dual-purpose uplink/stacking ports, and full PoE/PoE+ support.

• Switching Capacity: up to 304 Gb/s
• 1 GbE RJ45 Ports: up to 48
• 1 GbE SFP Ports: up to 24
• 10 GbE SFP+ Ports: up to 8
• 1/2.5 GbE RJ45 Ports: up to 16
• PoE Power Budget: up to 1480 W

The ICX 7150-48ZP and ICX 7150-C10ZP offer multi-gigabit ports, each with PoH up to 90 watts, simplifying the wiring of next-generation Ethernet-connected devices such as high-performance wireless APs, large HD displays, video surveillance equipment, and VDI thin terminals.

Performance & Thermal

The ICX 7150 series delivers high-performance switching with non-blocking architecture, ensuring that all ports can operate at full bandwidth simultaneously. The series also supports stack-level high availability and stack-level ISSU, ensuring service resiliency and business continuity.

• Aggregate Stack Bandwidth: up to 48 Gb/s
• Switches per Stack: up to 12
• Stacking Distance: up to 10 km

The ICX 7150 series also offers advanced thermal management, with a fanless mode that allows the switch to operate silently in noise-sensitive environments such as classrooms, hospitality suites, retail sites, hospitals, or other environments where quiet operation is required.

Technical Background

The ICX 7150 series is built on a foundation of advanced networking technologies, including a high-performance switching fabric and a robust software architecture. The series utilizes a combination of merchant silicon and custom-designed ASICs to deliver high-performance switching and routing capabilities. The underlying physics and engineering of the ICX 7150 series are based on the principles of packet switching, where data packets are transmitted between nodes in a network. The series also supports advanced networking protocols such as IPv6, IPv4, and MPLS, ensuring compatibility with a wide range of network architectures.

Competitive Landscape

The ICX 7150 series competes in a crowded market with several rival products, including the Cisco Catalyst 9300 series, the HP Aruba 8400 series, and the Juniper EX4400 series. These products offer similar features and performance to the ICX 7150 series, but may differ in terms of pricing, scalability, and manageability. The ICX 7150 series is positioned as a high-performance, enterprise-class switching solution that offers advanced features and scalability at an entry-level price point.

Market Positioning

The CommScope RUCKUS ICX 7150 series is designed for enterprise access deployment, targeting medium to large-sized businesses, educational institutions, and government agencies. The series competes directly with other enterprise-class switching solutions, and is positioned as a high-performance, scalable, and manageable solution for organizations that require advanced networking capabilities. The pricing of the ICX 7150 series is not publicly disclosed, but it is generally considered to be competitive with other enterprise-class switching solutions on the market.
