Executive Summary

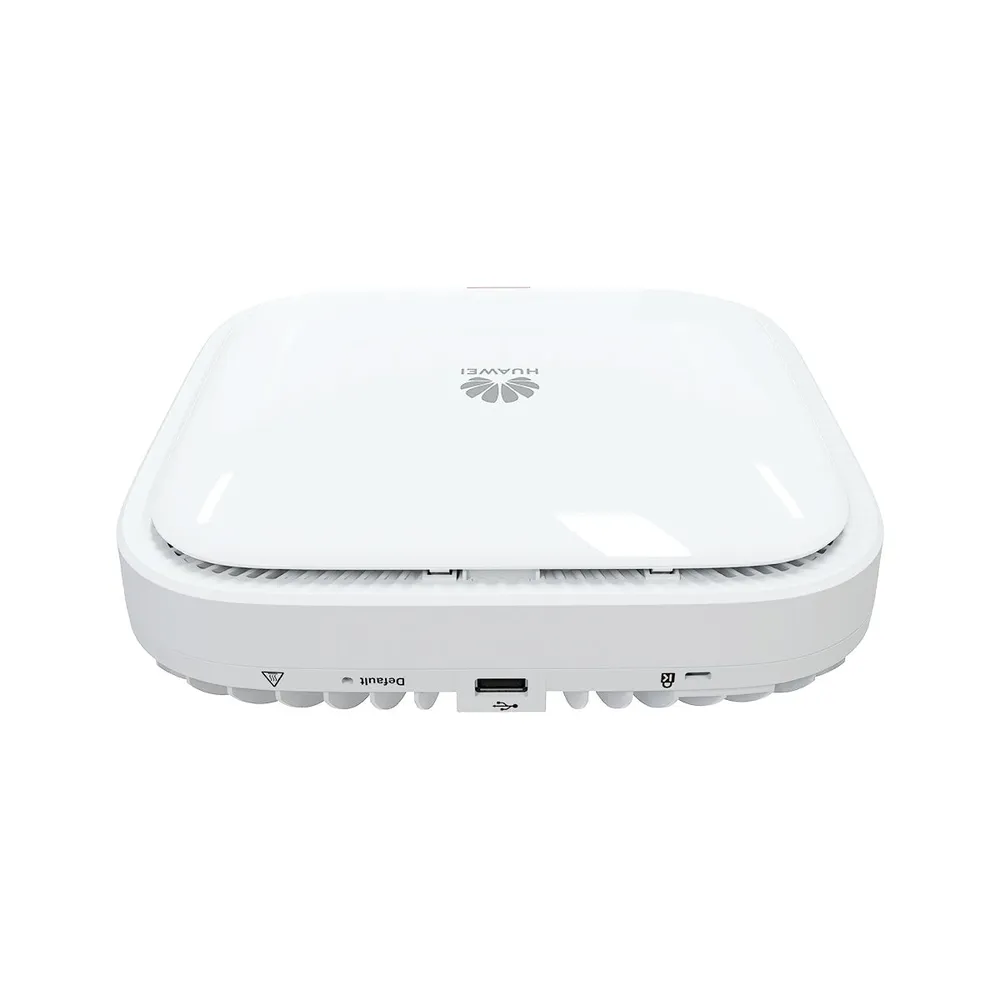

The Huawei AirEngine 8760-X1 is a high-density Wi-Fi 6 access point designed for challenging indoor environments. It features Software-Defined Radios (SDRs) and supports flexible switching between dual-radio, triple-radio, and dual-radio + one scanning radio modes. With a maximum throughput of 10.75 Gbps, this access point is suitable for high-density environments with heavy interference.

The AirEngine 8760-X1 is part of the AirEngine 5700, 6700, 8700, and 9700 D Series, which offer a range of access points for different deployment scenarios. The device has multiple part numbers, with the same software specifications but different minimum versions supported. Additionally, the hardware specifications, such as weight and power consumption, may vary slightly depending on the production batch.

The AirEngine 8760-X1 is designed to provide high-performance, reliable, and secure Wi-Fi connectivity for organizations that require it. Its advanced features, such as SDRs and Smart Antennas, make it an ideal choice for large enterprises, universities, and public venues.

Architecture & Design

The AirEngine 8760-X1 features 16 built-in, dual-band Smart Antennas, which achieve an astonishing device rate of up to 10.75 Gbit/s. These Smart Antennas effectively improve signal gain, with signals following users to achieve complete coverage with zero blind spots.

• Software-Defined Radios (SDRs) for flexible radio configuration
• Support for dual-radio, triple-radio, and dual-radio + one scanning radio modes
• 16 built-in, dual-band Smart Antennas for improved signal gain and coverage
• Max. speed: 10.75 Gbps
• Spatial stream: 4+4 or 2+4+2

The access point has a 10GE optical interface, a 5GE electrical interface, and a GE electrical interface. The device also supports Power over Ethernet (PoE++) for flexible deployment options.

The AirEngine 8760-X1's design allows for easy installation and maintenance. Its compact size and lightweight make it easy to deploy in a variety of environments, from large enterprises to small and medium-sized businesses.

Technical Background

The AirEngine 8760-X1's Wi-Fi 6 technology is based on the IEEE 802.11ax standard, which provides improved performance, capacity, and efficiency compared to previous Wi-Fi standards. The device's SDRs and Smart Antennas work together to provide a high-density Wi-Fi experience, with the SDRs allowing for flexible radio configuration and the Smart Antennas providing improved signal gain and coverage.

The AirEngine 8760-X1's technical background is rooted in the principles of radio frequency (RF) engineering and antenna design. The device's RF components are designed to provide high-quality signal transmission and reception, while its antenna design ensures optimal signal coverage and gain.

Performance & Thermal

The AirEngine 8760-X1 offers a maximum throughput of 10.75 Gbps, making it suitable for high-density environments with heavy interference. The device supports Wi-Fi 6 technology, which provides improved performance, capacity, and efficiency compared to previous Wi-Fi standards.

• Maximum throughput: 10.75 Gbps
• Wi-Fi 6 technology for improved performance, capacity, and efficiency
• Support for Power over Ethernet (PoE++)
• 10GE optical interface for high-speed connectivity

Specification not publicly disclosed: Thermal Design Power (TDP)

Specification not publicly disclosed: Thermal limits

The AirEngine 8760-X1's performance is also influenced by its thermal design. The device is designed to operate within a certain temperature range, and its thermal management system ensures that it can maintain optimal performance even in high-temperature environments.

Competitive Landscape

The Huawei AirEngine 8760-X1 competes with other high-density Wi-Fi 6 access points in the market, such as the Cisco Meraki MR56 and the Aruba AP-575. These devices offer similar features and performance, but the AirEngine 8760-X1's advanced SDRs and Smart Antennas set it apart from the competition.

The AirEngine 8760-X1's competitive landscape is also influenced by the growing demand for high-density Wi-Fi solutions. As more organizations require high-performance, reliable, and secure Wi-Fi connectivity, the demand for devices like the AirEngine 8760-X1 is increasing.

Market Positioning

The Huawei AirEngine 8760-X1 is designed for high-density indoor environments, such as large enterprises, universities, and public venues. The access point is suitable for organizations that require high-performance, reliable, and secure Wi-Fi connectivity.

Direct competitors: Cisco Meraki MR56, Aruba AP-575

Exact target buyer: Large enterprises, universities, and public venues that require high-density Wi-Fi solutions.

The AirEngine 8760-X1's market positioning is also influenced by its price point and total cost of ownership. The device is designed to provide a high return on investment, with its advanced features and performance providing long-term benefits for organizations.
